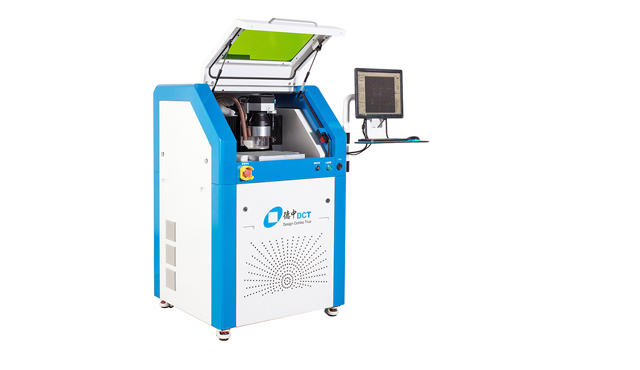

Based on DCT S&S technology, DirectLaser PC1 could process an 80mm x 100mm conductive pattern on PCB in just a few minutes. The system could also have drilling and Routing functions when it equipped with green, UV, picosecond, or femtosecond ultrashort pulse laser source. In this way, in addition to the hole metallization and lamination process, making PCB easily like printing on a single machine is realizable.

S&S technology is not only a breakthrough of a single technology, but also the clever union of hardware, software and application innovation. The device is equipped with CircuitCAM7 data processing software and DreamCreaTor device operation software. This two software are the crystallization of DCT′s application technology expert knowledge, according to the specific structure of circuit conductive graph, they cleverly optimize the laser processing path and laser parameters, and play the maximum advantages of direct laser manufacturing, powerful function, smooth and easy to use. In addition, CCD automatic positioning system, industrial control computer and vacuum workpiece adsorption loading platform are also included by standard configuration. Furthermore, a vacuum cleaner is specially developed by DCT for direct laser circuit technology, which is quiet and efficient to collect the stripped copper.
