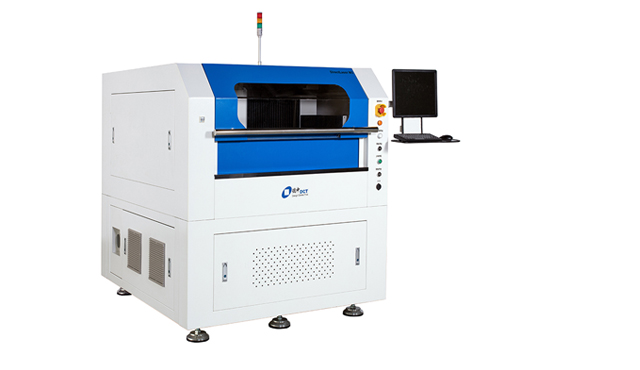

DirectLaser M3 SMT stencil laser cutting equipment
DirectLaser M3 is a professional equipment for SMT stencil with very high cutting quality. It is simple, easy to set up, low purchase cost and fast capital recovery, which is very suitable for SMT assembly- and PCB-factory to produce stencil. It is also suitable for professional stencil service manufacturers, and other electronic outsourcing service providers for update their equipment and expand production capacity.
Features
Stable and reliable operation
World-class software
Top-class optical device
Easy to use and operate
Reliable after-sales service
Product parameters
Technical data | DirectLaser M3 |
Max.working area | 800mm x 600mm |
Repetitive accuracy | ≤±2μm |
X/Y resolution | ≤0.1μm |
Laser wavelength | 1,070nm |
X/Y movement system | Linear motor |
Average laser power | ≥100W |
Cutting thickness | 20μm~300μm |
Platform structure | Granite base, fixed gantry structure |
Dimension(W x H x D) | 1,480mm x 1,585mm x 1,713mm |
Weight | Approx. 2,300kg |
Configuration and options | DirectLaser M3 |
Data processing software | CircuitCAM 7 Pro |
Machine operating software | DreamCreaTor 3 |
Automatic feeding | Optional |
Camera automatic positioning | Included |
Exhaust unit | Included |
Operating ambient | DirectLaser M3 |
Power requirements | 3 x 380V+N+PE,50Hz,3.0kW |
Ambient temperature | 22°C±2°C |
